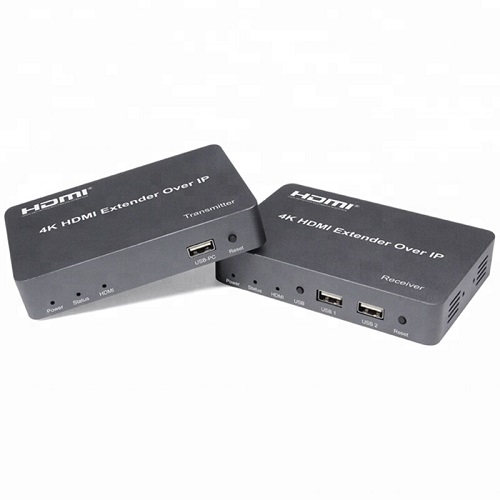

The HDMI Extender uses a single Ethernet (Cat5e or Cat6) cable instead of an HDMI cable to transmit high-definition video and audio signals up to 150 meters. Using an Ethernet switch, this device can transmit the signal extending it to multiple receivers (point-to-multipoint function).
Features: Supports HDMI signal transmission at a distance of 150m.Resolution 4K (3840×2160) / 30Hz.HDMI version 1.4b.Easy plug and play, no additional software required.Direct connection (point-to-point), signal distribution (point-to-multipoint), cascade connection functions.IR control, USB mouse and keyboard port (KVM control function) are supported.Can be adapted for TV, PC, projectors, video cameras.
Specifications: Max (CAT5e / CAT6 cable) length between transmitter and receiver: 150m.HDMI version: HDMI 1.4b.HDMI resolution: 4K (3840×2160) / 30Hz; 8/10/12 bit color depth.Max. transmitter (TX) operating current: 420mA.Max. receiver (RX) operating current: 480mA.Power adapter: AC (50Hz, 60Hz) 100V-240V; DC 5V / 1A.Operating temperature: -0°C ~ + 55°C.Operating humidity: 10-80% RH.Size: 124x85x24 mm.Weight: TX 204g; RX 207g.
Transmitter ports:POWER – power indicator light.STATUS – status indicator light.HDMI – signal indicator light.USB-PC – USB input for PC.RESET – reset button.DC / 5V – power adapter supply.UTP – network interface by CATe/CAT6.IR-TX – IR transmitter.HDMI-IN – HDMI input.Receiver ports:POWER – power indicator light.STATUS – status indicator light.HDMI – signal indicator light.USB – button to wake up USB1 / USB2.USB-1, USB-2 – USB input for mouse / keyboard.RESET – reset button.DC / 5V – power adapter supply.UTP – network interface by CAT5/CAT6.IR-TX – IR receiver.EDID – (Extended Display Identification Data) button to store the TV’s EDID information into the extender.HDMI-OUT – HDMI output.
Packing list: Transmitter (TX).Receiver (RX).Power adapter x2 (5V / 1A DC).IR controller x2.Users manual.
Warranty: 24 months.
