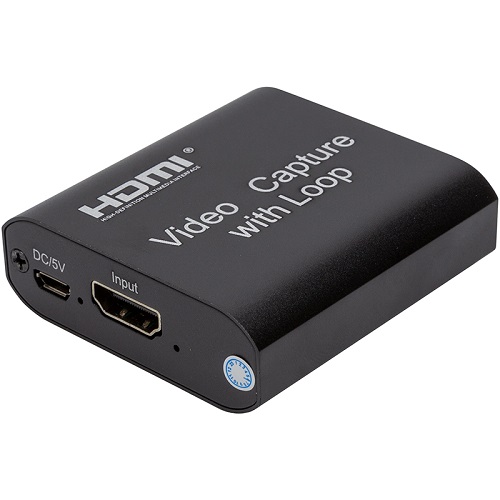

HDMI Video Capture Device allows you to capture high-definition video and audio and transmit them to a computer or smartphone for preview, recording or storage. It is suitable for high-definition video recording, training recordings, medical imaging and other similar applications. The maximum output resolution is Full HD 1080p.


Features:
Supports HDMI signal pass-through to an external display via an additional HDMI output (HDMI Loop Out).
Supports a maximum input resolution of up to 4K.
Supports video output resolutions up to 1080p.
Supports HDMI AWG26 cables up to 15 m in length (at 1080p and lower resolutions).
Supports USB Video Class (UVC) and USB Audio Class (UAC) standards.
Compatible with Windows, Android and macOS operating systems.
Compatible with a wide range of capture software, including VLC, OBS, Amcap and more.
Compact and portable.


Specifications:
Maximum input resolution: 4K @ 30Hz.
Maximum output resolution: 1080p (1920 x 1080).
Voltage: 5V DC.
Current: Max. 0.7A.
USB standard: USB 2.0.
Supported color depth: 8 / 10 / 12-bit (Deep Color).
Supported audio format: LPCM.
Video output formats: YUV, JPEG.
Maximum input cable length: Up to 15 m (HDMI AWG26).
Operating temperature: -10°C to +55°C.
Dimensions: 55 x 55 x 20 mm.
Weight: 50 g.


Warranty: 12 months.
