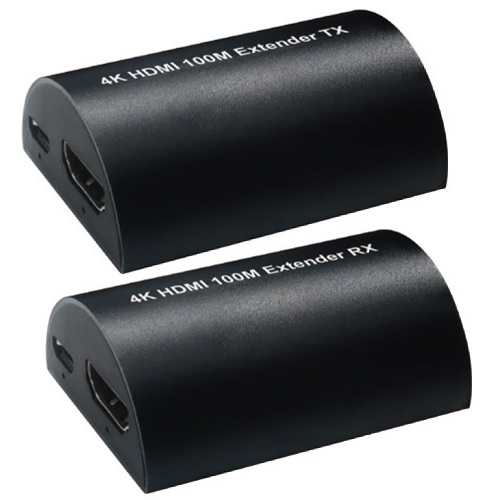

HDMI extender up to 100m, 4K, HDMI cable connection up to 10m, power supply via micro USB cable. The extender uses a single Cat5e or Cat6 (recommended) cable instead of an HDMI cable to transmit a high-definition signal up to 100 meters.
Features: HDMI resolution 4K / 60Hz.Supports a maximum frequency of 3.4Gbps, bandwidth 340MHz.Supports standard AWG26 HDMI cable, input/output up to 10 meters.Supports 100m long distance transmission.Low power consumption, low temperature, high safety.
Specifications: Max (CAT5e / CAT6 cable) length between transmitter and receiver: 100m.HDMI resolution: 4K / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i.HDMI AWG26 cable input / output length: up to 10m.Input video signal: 0.5-1.5V p-p.Output DDC signal: 5V p-p (TTL).Max. transmitter (TX) operating current: 350mA.Max. receiver (RX) operating current: 200mA.Max. bandwidth: 340MHz.Max. baud rate: 3×3.4Gbps.Power adapter format: AC (50Hz, 60Hz) 100V-240V; DC 5V / 1A.Operating temperature: -15°C ~ +45°C.Operating humidity: 5-90% RH.Size: 52x38x17 mm.Weight: TX 24.0g; RX 24.4g.
Transmitter ports:POWER – power input port.INPUT – HDMI input port.CAT5E/6 – CAT5e / CAT6 cable connection port.Receiver’s ports:POWER – power input port.OUTPUT – HDMI output port.CAT5E/6 – CAT5e / CAT6 cable connection port.
Packing list: Transmitter (TX) x1.Receiver (RX) x1.Micro USB cable x2.
Warranty: 24 months.
