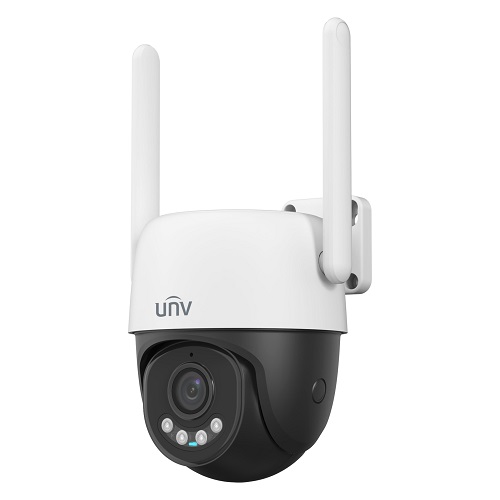

Outdoor IP66-rated dome PT camera featuring 3MP resolution, two-way audio, LED illumination, and reliable night vision up to 30 meters. The camera is ideal for locations without Wi-Fi access, as it uses a 4G LTE mobile network for data transmission. Video recordings can be stored on a microSD card with a capacity of up to 512GB.

Features:
The PT (Pan/Tilt) camera can rotate horizontally up to 345° and tilt vertically up to 90°, providing wide-area coverage and minimizing blind spots.
4G mobile network connectivity. Easy installation.
Frame rate: 3MP (2304×1296) @ 25fps.
Dual illumination is used for night surveillance: IR and warm white light, both with a range of up to 30 m.
Supports audible and visual warning, making alerts and alarm events more noticeable.
The camera supports motion detection, advanced human and vehicle detection, and high-decibel sound detection. These functions help detect important events more accurately and reduce unnecessary alerts.
Supports auto tracking.
Built-in speaker and microphone support remote two-way communication with visitors.
Suitable for country houses, farms, construction sites, warehouse areas, parking lots, garages, yards, and other remote locations.
Storage: supports microSD (TF) cards with a capacity of up to 512GB (card not included).
Note: microSD card and SIM card are sold separately.


Technical Specifications:
CMOS sensor: 1/3″ 3MP.
Scanning system: Progressive scan.
Lens: 4.0mm, F1.6.
Iris: Fixed.
Field of view: 75.0° (H).
Max. resolution: 2304×1296 pixels.
LED (warm light) illumination: up to 30 m.
IR illumination: up to 30 m.
IR wavelength: 850 nm.
IR on/off control: Automatic.
Day/Night: ICR, IR-cut filter.
Minimum illumination: 0.003 lux (Color, F1.6, AGC On); 0 lux (IR On).
Electronic shutter: Auto/Manual, 1 ~ 1/100000 s.
Image flip: Normal / Vertical / Horizontal / 180°.
Pan range: 0-345°.
Tilt range: 0-90°.
Pan/Tilt speed: Pan 1°/s ~ 40°/s; Tilt 1°/s ~ 30°/s.
Presets: 20.
Video compression: Ultra 265, H.265, H.264.
Frame rate: Main stream: 3MP (2304×1296) @ 25fps; 2MP (1920×1080) @ 25fps; 720p (1280×720) @ 25fps. Sub stream: 640×360 @ 25fps; 2CIF (704×288) @ 25fps; CIF (352×288) @ 25fps.
Bit rate: 128 Kbps ~ 2048 Kbps.
WDR (Wide Dynamic Range): DWDR.
S/N ratio: >52 dB.
ROI (Region of Interest): Supported.
Privacy masking: Supported (NVR only).
Noise reduction: 2D/3D DNR.
White balance: Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto 2.
Image enhancement: Digital Defog.
Functions: Motion detection, advanced motion detection based on human and vehicle detection, high-decibel sound detection.
Security: IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication.
Auto tracking: Supported.
Digital zoom: 4x.
Audio compression: G.711U, G.711A.
Audio bit rate: 64 Kbps.
Built-in microphone and speaker.
Two-way audio: Supported.
Audio noise reduction: Supported.
MicroSD card slot: Supports cards up to 512GB.
4G frequency bands: LTE-FDD B1 / B3 / B5 / B7 / B8 / B20 / B28; LTE-TDD B38 / B40 / B41.
4G standards: LTE-FDD, LTE-TDD.
Integration: API, SDK.
Network protocols: IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP, ICMP, ARP, UPnP, RTP, RTCP.
Supported browsers: IE 10+, Chrome 45+, Firefox 52+, Edge 79+.
Network interface: 1 x RJ45 10M/100M Base-TX Ethernet.
Power interface: Ø5.5 mm coaxial DC power connector.
Power supply: DC 12V.
Power consumption: 8W.
Dimensions: Ø110 mm x 141 mm x 151 mm (Ø4.3″ x 5.6″ x 6.0″).
Reset button.
LED status indicator: 1, red/blue.
Operating temperature: -30°C ~ +60°C.
Operating humidity: <95% RH (non-condensing). Weight: 0.39 kg (0.85 lb). Color: White/Black. Ingress protection: IP66 (IEC 60529). Surge protection: 4 kV. Certifications: EMC: CE EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR Part 15 B). Safety: EN 62368-1. Environmental: CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU).

Warranty: 24 months.
