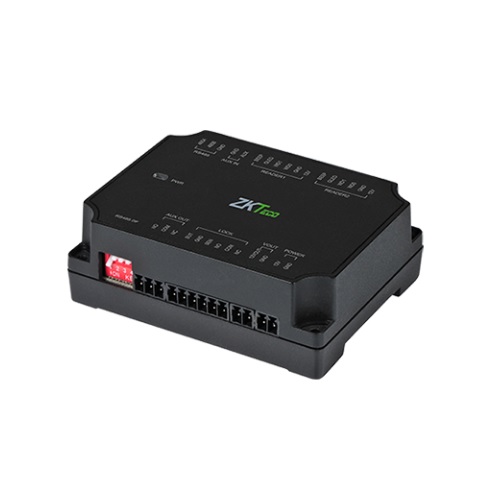

DM10 Mini Controller for C2-260 (extend doors up to 8 more).


Features:
The DM10 is 1-door lock extension panel that works with access control devices that can connect and communicate via RS485, such as F18, Horus, C2-260. DM10 does not record any user information.
All data is processed on A&C devices and the DM10 only controls the lock.


Specifications:
Number of supported doors: 1.
Number of scanners supported: 2 (Wiegand).
Communication interface: RS485.
Power supply: 12V (input and output).
Lock sensor: 1.
Exit button: 1.
Inputs: 3 (1x exit button, 1x door sensor, 1x aux input).
Relays: 2 (1x lock, 1x aux output).
Dimensions: 91.88×71.91×32.27mm.
Operating temperature: 0°C ~ + 45°C.
Operating humidity: 20% -80% RH.


Warranty: 24 months
