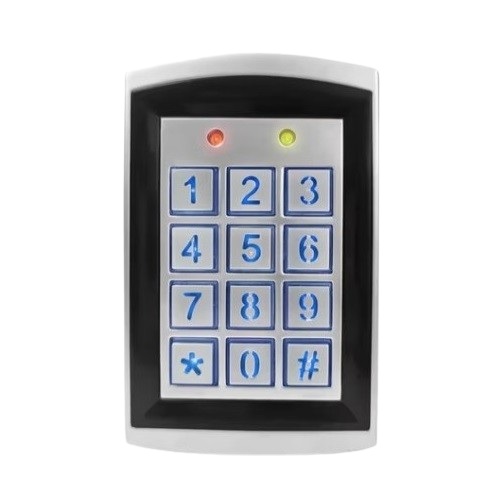

Standalone access control with integrated keypad and card reader, 125KHz EM, IP66.


Features:
Compact single entry standalone access control with keypad and remote card reader.
The RFID access control is designed for extreme weather conditions (-30°C~+70°C), suitable for outdoor as well as indoor use.
Die-cast zinc alloy housing ensures a robust and precisely formed construction that performs reliably under intensive use. Anti-tamper alarm.
The controller’s electronics are encapsulated in epoxy resin, providing reliable protection against moisture, dust, vibration, and tampering attempts.
Backlit keypad (the backlight can be switched on/off), convenient to use in the dark.
Supports two relays (e.g., for a door and a garage gate).
Access control in three ways: by card, by PIN code, or by card + PIN.
Supports 125 kHz EM cards.


Technical specifications:
Number of users (cards/PINs): 1010 (zone1: 1000 cards/PIN; zone2: 10 cards/PIN).
Access modes: card, PIN, card+PIN.
PIN length: 2-6 digits.
Operating frequency: 125KHz (EM).
Operating voltage: 12-24 V DC / 12-24 V AC..
Idle current: <30mA. Active current: <160mA. Card reading distance: ~5 cm. Number of doors supported: 2. Wiring connections: relay outputs, exit buttons, doorbell. Relay: 2 (No, Nc, Com contacts). Adjustable relay output time: 1-99 seconds (5 seconds default). Safety class: IP66. Installation: wall mount. Connection: Terminal block. Material: die cast zinc alloy. Operating temperature: -30°C~+70°C. Dimensions: 120 x 76 x 22 mm. Weight: 455g.
.
Warranty: 24 months.
