Standalone Access Control with Keypad and Card Reader, 125KHz EM | TV993529

SKU: 9990000993529

34,80 €

1 in stock

Keywords: Standalone Access Control with Keypad and Card Reader, 125KHz EM | TV993529, Access keypads, Access keypads Standalone Access Control with Keypad and Card Reader, 125KHz EM | TV993529, buy Standalone Access Control with Keypad and Card Reader, 125KHz EM | TV993529, cheap Standalone Access Control with Keypad and Card Reader, 125KHz EM | TV993529, best Standalone Access Control with Keypad and Card Reader, 125KHz EM | TV993529, online Standalone Access Control with Keypad and Card Reader, 125KHz EM | TV993529

Shipping:
 Venipak courier 1-3 business days: 7.90 euro
 Venipak pickup 1-3 business days: 3.30 euro

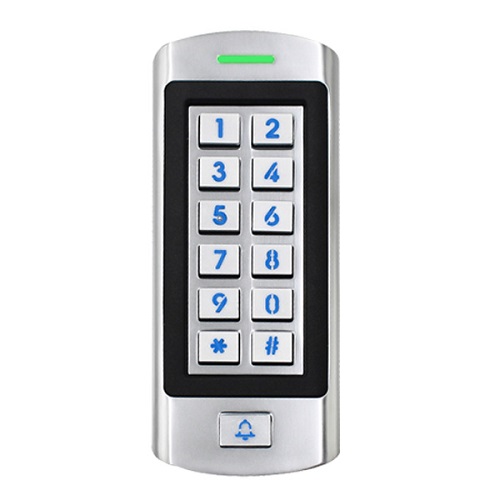

Standalone access control with integrated keypad and card reader, 125KHz EM, IP66.


Features:
Compact single entry standalone access control with keypad and remote card reader.
The RFID access control is designed for extreme weather conditions (-40°C~+60°C), suitable for outdoor as well as indoor use.
Metal case anti-vandal. Anti-tamper alarm.
Backlit keypad for use in the dark.
Supports 10 visitor users with 1 to 10 entries.
3 access modes: card, PIN or card+PIN.
Supports 125KHz EM cards.


Technical specification:
Number of users (cards/PINs): 1.000 (990 common users + 10 visitors).
PIN length: 4-6 digits.
Operating frequency: 125KHz.
Card reader: EM.
Operating voltage: 2-18 V DC.
Idle current: <50mA. Active current: <80mA. Card reading distance: 2~6 cm. Number of doors supported: 1. Wiring connections: relay output, exit button. Relay: 1 (for lock, No, Nc, Com contacts). Adjustable relay output time: 0-99 seconds (5 seconds default). Alarm output load: 3A max. Safety class: IP66. Installation: wall mount. Material: zinc alloy. Operating temperature: -40°C~+60°C. Relative humidity: 10%~90%RH (non-condensing). Dimensions: 136 x 56 x 25 mm. Weight: 425g.
.
Warranty: 24 months.
