Solar PV Cable, 200m, 4mm, Black | NV820092
SKU: 9990000820092
5 in stock
Keywords: Solar PV Cable, 200m, 4mm, Black | NV820092, Cables and PV connectors, Cables and PV connectors Solar PV Cable, 200m, 4mm, Black | NV820092, buy Solar PV Cable, 200m, 4mm, Black | NV820092, cheap Solar PV Cable, 200m, 4mm, Black | NV820092, best Solar PV Cable, 200m, 4mm, Black | NV820092, online Solar PV Cable, 200m, 4mm, Black | NV820092
Shipping:
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro

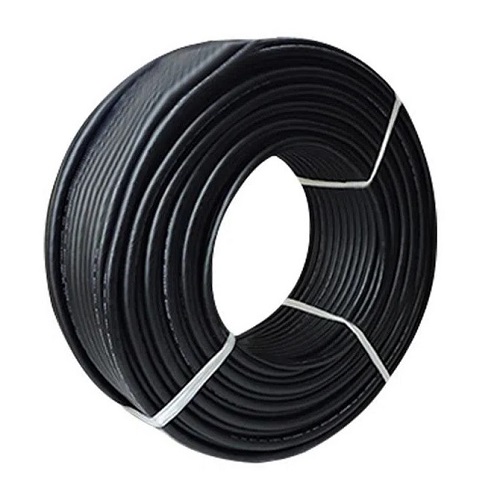

Black cylindrical cable 1×4 mm2 for solar power plants, UV resistant, 200m.Features:Oxygen-free copper wire core (IEC60228 class5) with a standard insulation thickness of high quality PVC.Low resistance, good conductivity, flexible, mechanical robust.Flame retardant, waterproof, resistant to high and low temperatures, with strong acid and alkali resistance, effective UV protection and short circuit resistance.
Technical data:Nominal voltage: 1500V.Current: 55A.Material: copper.Insulating material: PVC (polyvinyl chloride).Resistance: (20°C) <5.09 Ohm/km.Wire thickness: 4mm².Length: 200m.Operating temperature: -40°C ~ +90°C.Short circuit temperature: 200°C (up to 5 sec.).Cable color: black.Certification: IEC1500V, UL2000V, EN50396, EN60811-501, EN61034-2, IEC60332-1, UL FT1.
Warranty: 24 months.
