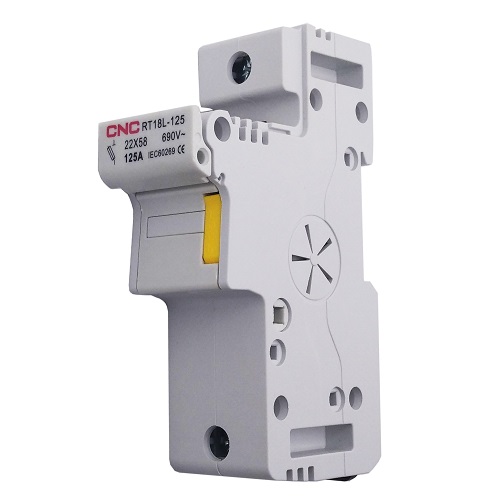

Fuse holder, 1P, 690V, 125A, DIN (NV822485)
SKU: 6942108772196
5 in stock
Keywords: Fuse holder, 1P, 690V, 125A, DIN (NV822485), DC Breakers, DC Breakers Fuse holder, 1P, 690V, 125A, DIN (NV822485), buy Fuse holder, 1P, 690V, 125A, DIN (NV822485), cheap Fuse holder, 1P, 690V, 125A, DIN (NV822485), best Fuse holder, 1P, 690V, 125A, DIN (NV822485), online Fuse holder, 1P, 690V, 125A, DIN (NV822485)
Shipping:
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro
Fuse holder, 1P, 690V, 125A, DIN rail mounting, suitable for 22×58 fuse
Features:
The holder is designed to hold, protect and mount fuses on a Din rail.
Suitable for gG standard fuse (with full breaking capacity range), size 22x58mm.
Circuit protection against overload and short circuit.
Standard: IEC 60269
Technical specifications:
Number of poles: 1.
Rated voltage: 690V.
Conventional heating current (CHC): max. 125A.
Suitable fuse: 22×58 mm.
Installation: on DIN rail, 35mm.
Dimensions: 126x78x36 mm.
Certificates: IEC 60269 CE.
Warranty: 24 months.
