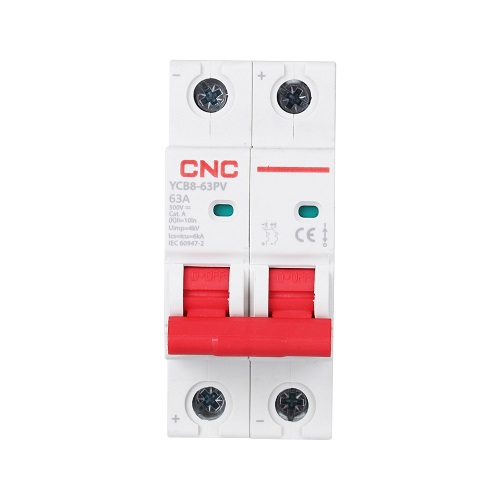

DC Miniature Circuit Breaker, 2P, 63A, Cat.A, 500VDC, 6kA (NV821662)
SKU: 6942367503326
5 in stock
Keywords: DC Miniature Circuit Breaker, 2P, 63A, Cat.A, 500VDC, 6kA (NV821662), DC Breakers, DC Breakers DC Miniature Circuit Breaker, 2P, 63A, Cat.A, 500VDC, 6kA (NV821662), buy DC Miniature Circuit Breaker, 2P, 63A, Cat.A, 500VDC, 6kA (NV821662), cheap DC Miniature Circuit Breaker, 2P, 63A, Cat.A, 500VDC, 6kA (NV821662), best DC Miniature Circuit Breaker, 2P, 63A, Cat.A, 500VDC, 6kA (NV821662), online DC Miniature Circuit Breaker, 2P, 63A, Cat.A, 500VDC, 6kA (NV821662)
Shipping:
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro
DC Miniature Circuit Breaker, 2P, 63A, Cat.A, 500V DC, 6kAFeatures:The rated voltage of the DC circuit breaker can reach 500V, and the rated operating current can reach 63A.Ensures reliable operation of DC systems.Used for isolation, short circuit and overload protection.Modular construction. Installation on a standard Din rail.Contact position indication (red indicated closed, green indicates opened).Meets IEC/EN 60947-2 standards and EU ROHS environmental protection requirements.Suitable for photovoltaic, industrial, civil, communication and other systems.
Technical data:Number of poles: 2.Nominal current (In): 63 A.Class: A.Rated voltage (Ue): DC 500 V.Insulation voltage (Ui): 1200 V.Ultimate breaking capacity (Icu): 6000 A.Rated impulse withstand voltage (Uimp): 4000 V.Tripping type: thermomagnetic.Mechanical life: 20000 times.Electrical life: 1500 times.Safety class: IP20.Wire cross-section area: 2.5 – 25mm².Installation: on a DIN rail (35mm).Operating temperature: -35°C~+70°C.Storage temperature: -40°C~+85°C.Dimensions: 71.2 x 82 x 36 mm.Standards: IEC 60947-2 / EN 60947-2.
Warranty: 24 months.
