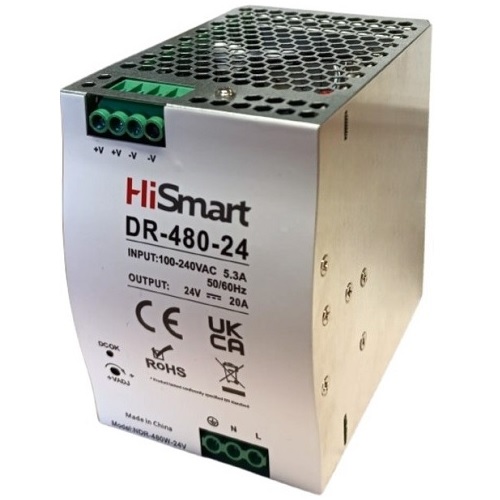

Industrial power supply 24V, 20A, 480W, DIN.


Features:
Aluminum high-power industrial switching power supply designed for mounting on a standard 35 mm DIN rail.
Protection: overload, overtemperature, overvoltage, and short-circuit protection.
Cooling by free air convection. The metal casing improves heat dissipation.
No load consumption: < 0.3W.&#x4;
Complies with the industrial immunity standards IEC 61000-6-2 (BS EN/EN61000-6-2).&#x4;
Suitable for industrial control systems, factory automation, semiconductor manufacturing equipment, electromechanical equipment, etc.&#x4;

&#x4;
Specifications:&#x4;
Type: switching power supply.&#x4;
Input range AC: 90-264V. &#x4;
Frequency: 47-63Hz.&#x4;
Output voltage DC: 24V.&#x4;
Rated current: 20A.&#x4;
Rated power: 480.8W.&#x4;
AC current: 4.8A/115V, 2.1A/230V.&#x4;
Ripple and noise: 240mvp-p.&#x4;
Efficiency: 92%.&#x4;
Leakage current: <3.5mA/220V AC.&#x4;
Working temperature: -20°C~+60°C.&#x4;
Working humidity: 20%-90%RH.&#x4;
Dimension: 85.5×125.2×128.5 mm.&#x4;
Weight: 1.2kg.&#x4;

&#x4;
Warranty: 24 months.&#x4;
