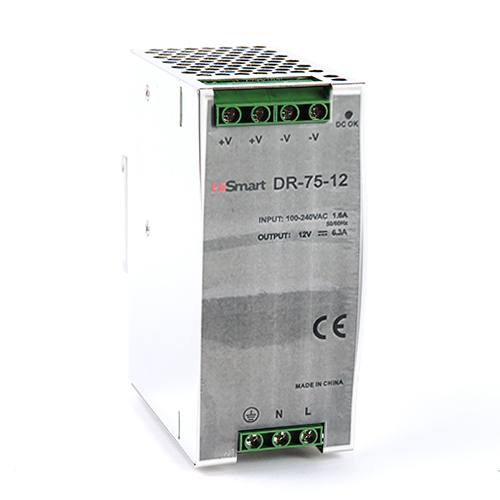

Power supply 12V, 6.3A, 75W, DIN | DR-75-12
SKU: 9990000700516
5 in stock
Keywords: Power supply 12V, 6.3A, 75W, DIN | DR-75-12, Power supply 12VDC, Power supply 12VDC Power supply 12V, 6.3A, 75W, DIN | DR-75-12, buy Power supply 12V, 6.3A, 75W, DIN | DR-75-12, cheap Power supply 12V, 6.3A, 75W, DIN | DR-75-12, best Power supply 12V, 6.3A, 75W, DIN | DR-75-12, online Power supply 12V, 6.3A, 75W, DIN | DR-75-12
Shipping:
Venipak courier 1-3 business days: 5.90 euro
Venipak pickup 1-3 business days: 3.30 euro
Venipak courier 1-3 business days: 5.90 euro
Venipak pickup 1-3 business days: 3.30 euro
Power supply 12V, 6.3A, 75W, DIN.
Features:Power supply operating in pulse mode. Can be installed on DIN rail: TS-35/7.5 or TS-35/15.Cooling by free air convection.Protections: short circuit / overload / over voltage.Small volume,low weight,high efficiency.
Specifications:Type: switching power supply.Input range AC: 90-264V. Frequency 47-63Hz.Output voltage DC: 12V.DC voltage adjustable range: -9% /+10%.Rated current: 6.3A.Rated power: 76W.AC current: 1.6A/115V, 0.96A/230V.Ripple and noise: 100mV p-p.Effieciency: 79%.Leakage current: <1mA / 240V AC.Working temperature: -20°C~+60°C.Working humidity: 20%-90%RH.Dimension: 55.5×125.2x100mm.Weight: 0.6kg.
Warranty: 24 months.
