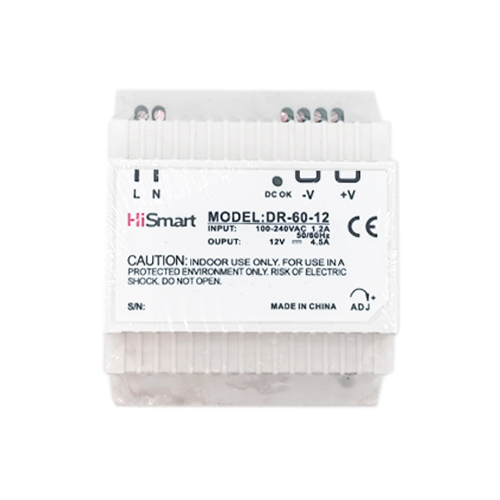

Power supply 12V, 4.5A, 60W, DIN | DR-60-12

SKU: 9990000700509

16,50 €

3 in stock

Keywords: Power supply 12V, 4.5A, 60W, DIN | DR-60-12, Power supply 12VDC, Power supply 12VDC Power supply 12V, 4.5A, 60W, DIN | DR-60-12, buy Power supply 12V, 4.5A, 60W, DIN | DR-60-12, cheap Power supply 12V, 4.5A, 60W, DIN | DR-60-12, best Power supply 12V, 4.5A, 60W, DIN | DR-60-12, online Power supply 12V, 4.5A, 60W, DIN | DR-60-12

Shipping:
 Venipak courier 1-3 business days: 5.90 euro
 Venipak pickup 1-3 business days: 3.30 euro

Power supply 12V, 4.5A, 60W, DIN.
Features:Power supply operating in pulse mode. Can be installed on DIN rail: TS-35/7.5 or TS-35/15.Cooling by free air convection.Protections: short circuit / overload / over voltage.Small volume,low weight,high efficiency.
&#x4;Specifications:&#x4;Type: switching power supply.&#x4;Input range AC: 90-264V. Frequency 47-63Hz.&#x4;Output voltage DC: 12V.&#x4;DC voltage adjustable range: -9% /+10%.&#x4;Rated current: 4.5A.&#x4;Rated power: 54W.&#x4;AC current: 1.2A/115V, 0.65A/230V.&#x4;Ripple and noise: 100mV p-p.&#x4;Effieciency: 82%.&#x4;Leakage current: <1mA / 240V AC.&#x4;Working temperature: -20°C~+60°C.&#x4;Working humidity: 20%-90%RH.&#x4;Dimension: 78x93x56mm.&#x4;Weight: 0.3kg.&#x4;
&#x4;Warranty: 24 months.
