Tone Generator and Probe Kit for Telephone and Network Line Test


Features:
Professional cable tracing and diagnostic kit designed for tracing cable routes, identifying a specific wire within a bundle, checking circuit continuity, and diagnosing telephone lines.

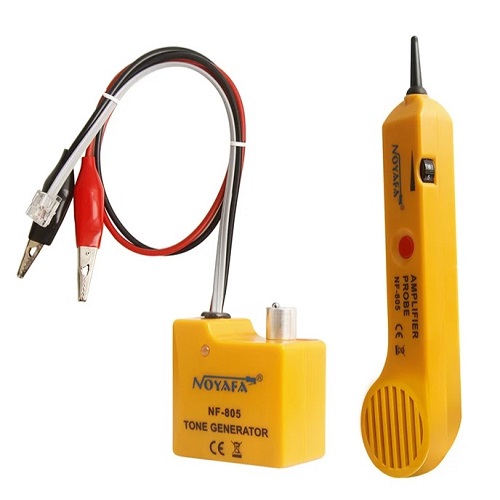

The kit consists of a Tone Generator and an Amplifier Probe. The Tone Generator sends a tone signal through the selected wire, while the Amplifier Probe detects the signal to locate the target cable or trace its route.
The device supports cable testing over distances of up to 1.5 km.
It supports TONE and CONT operating modes, while the two-note tone helps distinguish the target cable from adjacent cables.
The Amplifier Probe detects the transmitted signal without direct contact with the conductor.
The device can be used to check telecommunication lines with active DC voltage up to 48 V.
An integrated earphone jack makes operation more convenient in noisy environments.
The low-battery indicator warns when the battery voltage is low.
The device is suitable for telephone cables, twisted-pair and network cables, Cat3 and other categories of data cables, coaxial cables, audio/video signal cables, as well as standard solid and stranded wires.
It can also be used for tracing and testing de-energized AC wiring.


Functions:
The device allows cable routes to be traced and individual wires to be identified within cable bundles. The Tone Generator applies a tone signal to the selected wire, while the Amplifier Probe detects the signal along the cable route or within the bundle.
CONT mode is used for wire and circuit continuity testing. It can help identify open circuits, short circuits, and incorrect connections.
TONE mode is used to apply a tone signal to the cable for tracing and identification. The Amplifier Probe detects the signal without direct contact with the conductor, allowing the target cable to be located without physically disconnecting it.
The device can also be used for analog telephone line diagnostics. It can identify line status, including idle, ringing, and busy conditions, as well as check line polarity and determine the positive and negative conductors.
Note: Batteries are sold separately.


Technical specifications:
Compatible cables: De-energized AC wires, telephone and twisted-pair (TP) wires, all categories of voice and data cables, and virtually any standard cable or wire.
Tone frequency: 0.6-2 kHz.
Maximum testing distance: 1.5 km.
Tone Generator max working current: 20 mA.
Amplifier Probe max working current: 70 mA.
Tone signal: one-tone / two-note tone.
Function selection: TONE / OFF / CONT (Toggle switch).
Tone generator connector: RJ11 (6P2C), alligator clips.
Amplifier probe connector: earphone jack
Continuity test threshold: 10 Ohm.
Maximum signal voltage: 8 Vp-p.
Voltage protection: 48 V DC.
Power supply: 9V DC battery, Krona (NEDA 1604 / 6F22 type) (1 pc. for the Tone Generator + 1 pc. for the Amplifier Probe; batteries not included)
Tone generator dimensions: 57x56x32 mm.
Tone generator weight: 97 g.
Amplifier probe dimensions: 235x55x25 mm.
Amplifier probe weight: 116 g.


Warranty: 24 months.
