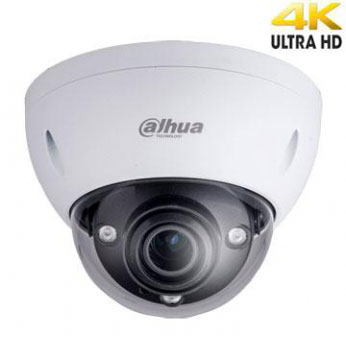

Features:&#x4;&#x4;• 1/1.7” 12Megapixel progressive scanExmor R CMOS&#x4;• Support H.265&H.264dualencoding&#x4;• Max 20fps@12MP(4000× 3000),25/30fps@4K(3840×2160)&#x4;• DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC&#x4;• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS&#x4;• 4.1mm ~16.4mm motorizedlens&#x4;• Max. IR LEDs Length 50m&#x4;• IP67,IK10,PoE&#x4;&#x4;Technical Specifications:&#x4;&#x4;Camera&#x4;• Image Sensor 1/1.7”12Megapixel progressive scan Exmor RCMOS&#x4;• Effective Pixels 4000(H) x 3000(V)&#x4;• Scanning System Progressive&#x4;• Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s&#x4;• Min. Illumination 0.02Lux/F1.53(Color);0Lux/F1.53(IR on)&#x4;• S/N Ratio More than 50dB&#x4;• Video Output 1 port&#x4;Camera Features&#x4;• Max. IR LEDs Length 50m&#x4;• Day/Night Auto(ICR)/Color/B/W&#x4;• Backlight Compensation BLC / HLC /DWDR/SSA&#x4;• White Balance Auto/Natural/Street Lamp/Outdoor/Manual&#x4;• Gain Control Auto/Manual&#x4;• Noise Reduction 3D&#x4;• Privacy Masking Up to 4 areas&#x4;• EIS Support&#x4;• Ultra Defog Support&#x4;• Smart focus Auto focus&#x4;Lens&#x4;• Focal Length 4.1mm~16.4mm&#x4;• Max Aperture F1.53&#x4;• Focus Control Motorized&#x4;• Angle of View H: 112 ?~35?V:79 ? ~28 ?&#x4;• Lens Type Motorized/ Auto Iris(DC)&#x4;• Mount Type Board-in Type&#x4;Video&#x4;• Compression H.265/ H.264&#x4;• Resolution 12M(4000× 3000)/8M(3840× 2160)/6M(3072× 2048)/5M(2560× 1920)/3M(2048× 1536)/3M(2304×1296)1080P(1920× 1080)/1.3M(1280× 960)/720P(1280× 720)/D1(704× 576/704×480) /VGA(640×480)/CIF(352×288/342×240)&#x4;Frame Rate&#x4;• Main Stream 12M(1~20fps)/8M(1~25/30fps)&#x4;• Sub Stream D1/VGA/CIF(1 ~ 25/30fps)&#x4;• Third Stream 1080P/720P/D1(1 ~ 25/30fps)&#x4;• Bit Rate H.265: 19 ~ 9984 Kbps&#x4;• H.264: 32 ~ 16384 Kbps&#x4;• ROI Up to 4 areas&#x4;Audio&#x4;• Compression G.711a/ G.711Mu/G.726/AAC&#x4;• Interface 1/1 channel In/Out&#x4;Smart Function(Optional)&#x4;• Smart detection&#x4;• Tripwire&#x4;• Intrusion&#x4;• Object Abandoned&#x4;• ObjectMissing&#x4;• Audio detect&#x4;• Defocus detect&#x4;• Face detect&#x4;• Intelligent function&#x4;• People Counting&#x4;• Heat Map&#x4;Network&#x4;• Ethernet RJ-45 (100/1000Base-T)&#x4;• Wi-Fi N/A&#x4;• Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x,ONVIF Profile S&G, PSIA, CGI&#x4;• Max. User Access 20users&#x4;• Smart Phone iPhone, iPad, Android Phone&#x4;Auxiliary Interface&#x4;• Memory Slot Micro SD, Max 128GB&#x4;• RS485 N/A&#x4;• Alarm 1/1 channel In/Out&#x4;General&#x4;• Power Supply DC12V/AC24V, PoE (802.3at)&#x4;• Power Consumption <18W (with IR on, motorized lens working)&#x4;• Working Environment -40°C~+60°C, Less than 95% RH&#x4;• Ingress Protection IP67&#x4;• Vandal Resistance IK10&#x4;• Dimensions 159mm× 117.9mm&#x4;• Weight 0.96kg(1.75kg with packaging)
