Unipolar Junction Box 160A | NV821785
SKU: 6942108747736
50 in stock
Keywords: Unipolar Junction Box 160A | NV821785, Cable connectors, Cable connectors Unipolar Junction Box 160A | NV821785, buy Unipolar Junction Box 160A | NV821785, cheap Unipolar Junction Box 160A | NV821785, best Unipolar Junction Box 160A | NV821785, online Unipolar Junction Box 160A | NV821785
Shipping:
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro

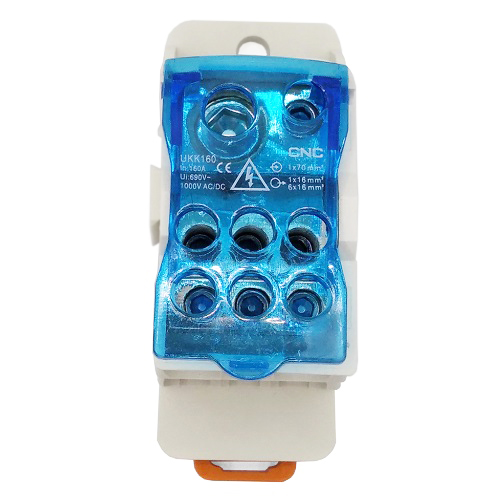

Unipolar junction box, 160A, with buckle
Features:
The electrical cable junction box is intended for cable connections or branches. Useful in electrical distribution systems.
Suitable in electrical panels, mounting on a Din rail.
Transparent cover allows you to check reliable cable connection.
The body is made of flame retardant material PA, resistant to high temperatures and with strong insulating properties. Terminals brass plated, strong, durable, corrosion resistant, with good conductivity.
Technical data:
Nominal current: 160 A.
Voltage: AC/DC 690-1000 V AIEC.
Cross-sectional area of the connected cables: 1x (10-35 mm²) / 7x (2.5-16 mm²).
Installation: on a DIN rail.
Terminals: brass plated.
Body material: PA nylon.
Safety class: V0 UL94 (flame retardant).
Dimensions: 30 x 76.5 x 45.5 mm.
