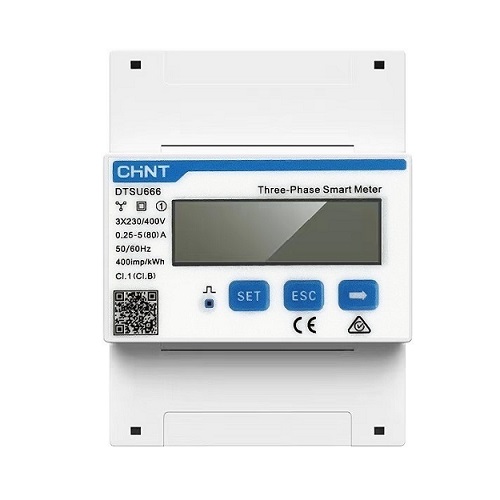

PV smart meter 5-80A, 3-phase, with RS485, Modbus, 3P4WFeatures:The smart meter is designed for grid export limitation and self-consumption monitoring.Compatible with Growatt PV inverters.Class1 measurement reliability.With LCD display.Smart Meter is easy to mount on Din rail.
Specifications: Rated voltage: AC 230/400V.L-L voltage range: AC 320V ~ 520V.Current: 5A.Current range: 5A ~ 80A.Frequency: 50/60Hz.Number of phases: 3.Accuracy class: class 1 (voltage/current 0.5%, power 1%, frequency 0.2%).Interface: RS485.Baud rate 9600 bit/s.Communication protocol: Modbus RTU.Installation: on DIN rail.Dimensions: 94.5x72x65 mm.Safety class: IP51.Operating temperature: -25°C to 55°C.Operating humidity: <75%RH.Weight: 398g.Colour: white.Certifications: CE, RoHS.Consumption: <1.5W / 6VA.RS485 cable length: 15m.
Warranty: 24 months.Download Specifications SPM-TPM.pdf
