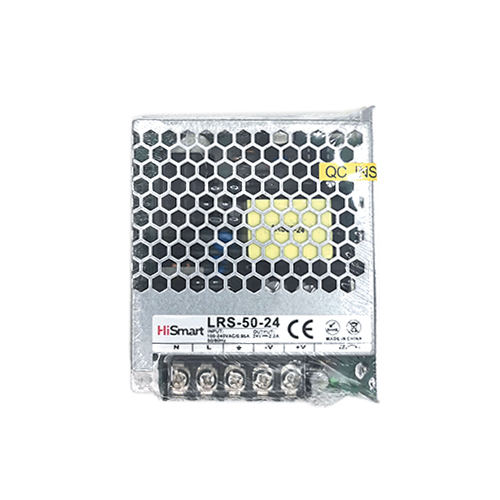

Power supply 24V, 2.2A, 50W | LRS-50-24
SKU: 9990000700264
5 in stock
Keywords: Power supply 24V, 2.2A, 50W | LRS-50-24, Power supply 24V, Power supply 24V Power supply 24V, 2.2A, 50W | LRS-50-24, buy Power supply 24V, 2.2A, 50W | LRS-50-24, cheap Power supply 24V, 2.2A, 50W | LRS-50-24, best Power supply 24V, 2.2A, 50W | LRS-50-24, online Power supply 24V, 2.2A, 50W | LRS-50-24
Shipping:
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro
Power supply 24V, 2.2A, 50W.
Features:
Ultra thin type 1U profile switching power supply operating in pulse mode.
Small volume, low weight, high efficiency.
Cooling by free air convection.
Protections: short circuit / overload / over voltage.
No load consumption: <0.5W.
Operating altitude up to 5000 meters.
Specifications:
Type: switching power supply.
Input range AC: 90-264V. Frequency 47-63Hz.
Output voltage DC: 24V.
DC voltage adjustable range: ±10%.
Rated current: 2.2A.
Rated power: 52.8W.
AC current: 0.95A/115V, 0.56A/230V.
Ripple and noise: 150mV p-p.
Effieciency: 88%.
Leakage current: <0.75mA / 240V AC.
MBTF: min 630000 hours.
Working temperature: -30°C~+70°C.
Working humidity: 20%-90%RH.
Dimension: 99x82x30mm.
Weight: 0.21kg.
Warranty: 24 months.
