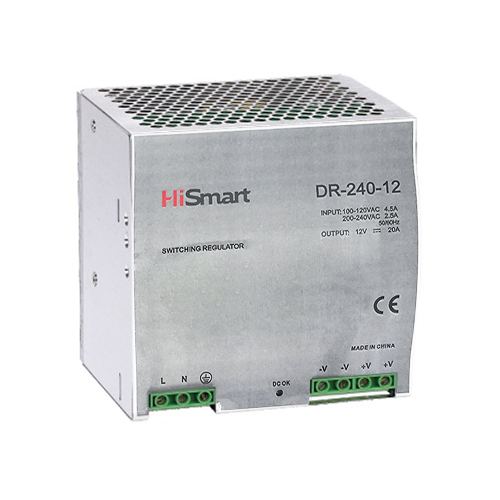

Power supply 12V, 20A, 240W, DIN | DR-240-12
SKU: 9990000700530
5 in stock
Keywords: Power supply 12V, 20A, 240W, DIN | DR-240-12, Power supply 12V, Power supply 12V Power supply 12V, 20A, 240W, DIN | DR-240-12, buy Power supply 12V, 20A, 240W, DIN | DR-240-12, cheap Power supply 12V, 20A, 240W, DIN | DR-240-12, best Power supply 12V, 20A, 240W, DIN | DR-240-12, online Power supply 12V, 20A, 240W, DIN | DR-240-12
Shipping:
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro
Power supply 12V, 20A, 240W, DIN.
Features:Power supply operating in pulse mode. Can be installed on DIN rail: TS-35/7.5 or TS-35/15.Cooling by free air convection.Protections: short circuit / over temperature / overload / over voltage.Small volume, low weight, high efficiency.
Specifications:Type: switching power supply.Input range AC: 95-264V. Frequency 47-63Hz.Output voltage DC: 12V.DC voltage adjustable range: -9% /+10%.Rated current: 20A.Rated power: 240W.AC current: 4.5A/115V, 2.5A/230V.Ripple and noise: 120mV p-p.Effieciency: 86%.Leakage current: <3.5mA / 240V AC.Working temperature: -10°C~+60°C.Working humidity: 20%-90%RH.Dimension: 125.5x125.2x100mm.Weight: 1.13kg.
Warranty: 24 months.
