PoE switch 8ch 1000Mbps +2G uplink | TV993574
SKU: 9990000993574
2 in stock
Keywords: PoE switch 8ch 1000Mbps +2G uplink | TV993574, PoE switch, PoE switch PoE switch 8ch 1000Mbps +2G uplink | TV993574, buy PoE switch 8ch 1000Mbps +2G uplink | TV993574, cheap PoE switch 8ch 1000Mbps +2G uplink | TV993574, best PoE switch 8ch 1000Mbps +2G uplink | TV993574, online PoE switch 8ch 1000Mbps +2G uplink | TV993574
Shipping:
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro

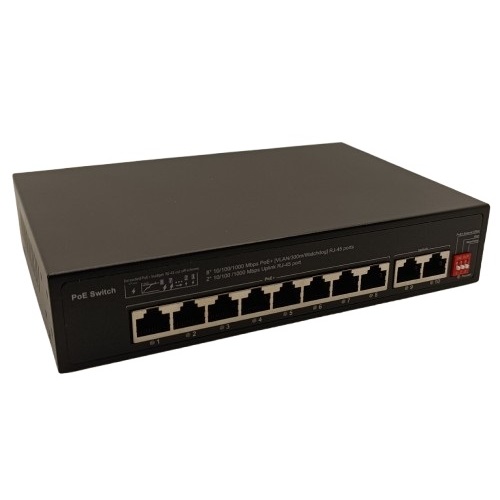

Unmanaged PoE Switch 8 Ports 1000M with 2 ports uplink 1000M.
Features:
8x 10/100/1000M PoE ports, 2x 10/100/1000M RJ45uplink ports, ports 1-8 support IEEE 802.3af/at.
Standard PoE power output is 15.4W per port, maximum power: 30W per port, total power budget 120W.
With DIP switch.
AI Extend mode: transmission up to 300 meters, single port speed is automatically reduced (up to 10 Mbps); other ports maintain 1000 Mbps speed up to 100 meters.
VLAN mode supports isolation and VLAN for each of the 1–8 PoE ports.
PoE Watchdog / Auto Recovery mode for ports 1–8 supports AI-PoE network self-healing, automatically resolves camera operation issues and reduces maintenance needs.
Built-in power supply, power cable included.
Specifications:
Interface: 8x 10/100/1000Mbps Base-TX PoE ports (data/power), 2x 10/100/1000Base-T/TX uplink RJ45 ports (data only).
Network Protocol:
IEEE802.3 10BASE-T.
IEEE802.3i 10Base-T.
IEEE802.3u 100Base-TX.
IEEE802.3ab 1000Base-T.
IEEE802.3z 1000Base-X.
IEEE802.3x.
Input voltage: 100-240V AC, 50-60Hz.
Power pinout: default: 1/2(+), 3/6(-).
PoE standards: IEEE802.3af/at.
MAC address table: 4K.
Buffer memory: 4M.
Twisted Pair Transmission:
10BASE-T: Cat5 UTP (
Warranty: 24 months.
