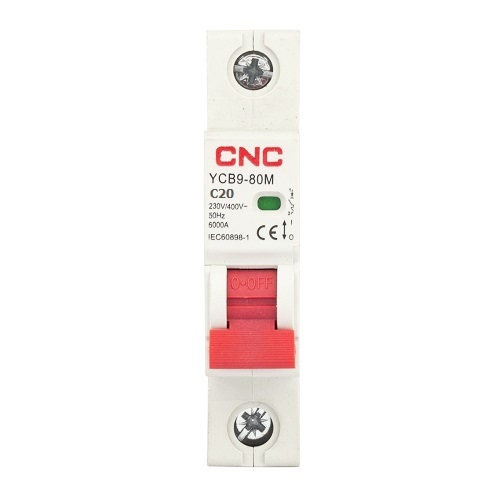

Miniature Circuit Breaker, 1P, 20A, Class C, 6kA (NV821433)
SKU: 6942034315047
5 in stock
Keywords: Miniature Circuit Breaker, 1P, 20A, Class C, 6kA (NV821433), Circuit Breakers 1P, Circuit Breakers 1P Miniature Circuit Breaker, 1P, 20A, Class C, 6kA (NV821433), buy Miniature Circuit Breaker, 1P, 20A, Class C, 6kA (NV821433), cheap Miniature Circuit Breaker, 1P, 20A, Class C, 6kA (NV821433), best Miniature Circuit Breaker, 1P, 20A, Class C, 6kA (NV821433), online Miniature Circuit Breaker, 1P, 20A, Class C, 6kA (NV821433)
Shipping:
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro
Miniature Circuit Breaker, 1P, 20A, Class C, 6kA Features: Protection against overload. Short circuit protection.Anti-mistake contact terminal block.Flame retardant, high temperature resistance and impact resistance.Contact position indication (red indicated closed, green indicates opened).
Specifications:Number of contacts: 1.Rated current (In): 20 A.Class: C.Rated voltage (Ue): AC 230/400 V.Insulation voltage (Ui): 500 V.Rated frequency: 50/60 Hz.Rated breaking capacity (Icu): 6000 A.Rated impulse withstand voltage (Uimp): 6000 V.Mechanical life: 20000 times.Electrical life: 8000 times.Safety class: IP20.Terminal connection type: cable / pin-type busbar.Wire/busbar cross-sectional area: up to 25mm² / 18-3 AWG.Connection: from top and bottom.Installation: on DIN rail EN 60715 (35mm) by means of fast clip device.Operating temperature: -5°C~+40°C (with daily average <35°C).Storage temperature: -25°C~+70°C.Dimensions: 85.5 x 78.8 x 18 mm.Standards: IEC 60898-1 / EN 60898-1.
Warranty: 24 months.
