Short description:

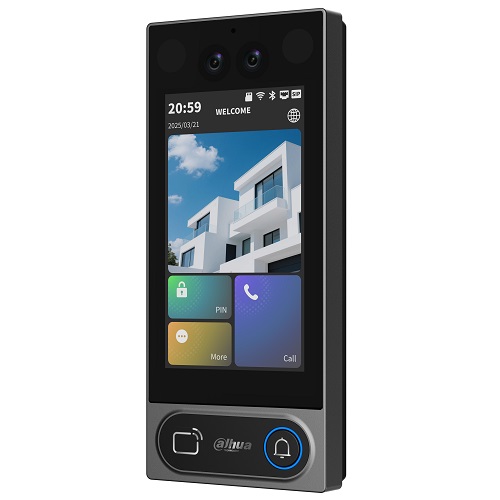

IP & Wi-Fi Villa Door Station with dual color cameras, 2 MP, 119° viewing angle, calling to indoor monitors, true WDR, 3D noise reduction, H.264, H.265; RJ-45 for network connection, RS-485 connection, 5” IPS 720×1280 resolution display, operates via the SIP protocol, IC card reader, supports up to 20,000 subscribers, 20,000 face templates, 100,000 cards; door sensor support, alarm; IP65, tempered glass, PC+ABS housing. Supports CGI and ONVIF standards. ULTRA series. Model: DH-VTO6631QB-WP.

Specifications:

• High-quality microprocessor.
• Operating system: LINUX OS.
• H.264, H.265 video compression technology.
• Integrated 2 MP FULL HD dual camera.
• 1/2.8″ 2 MP CMOS sensor.
• Camera viewing angle: H: 119°; V: 66°; D: 142°.
• Display: 5″ capacitive touchscreen, 720 × 1280 (IPS).
• Mechanical call button.
• Automatic day/night mode switching (Auto(ICR)/Color/B/W; Color/B/W).
• Audio compression: G.711a; G.711u; PCM.
• The camera allows viewing video on a computer, IP phone, or smartphone.
• Capacity: users 20,000; cards 100,000; face database 20,000.
• Door/gate opening: by password, IC/ID card, face recognition, remotely.
• Face scan distance 0.3–2.0 m when the person’s height is 1.2–2.0 m; scan time 0.2 s; accuracy 99.9%.
• Card reading distance: 0 cm–3 cm.
• Allows leaving a video message in internal storage.
• Internal storage: microSD slot up to 128 GB.
• Elevator control: residents and visitors can call elevators; permissions can also be granted via access control to access specific floors.
• Auto Snapshot.
• Built-in speaker.
• Two-way audio.
• WDR 120 dB, 3D-NR: noise reduction technology, echo suppression.
• 10/100 Mb/s network port (Ethernet RJ-45).
• Network protocols: RTSP; DNS; FTP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF.
• Wi-Fi standard: IEEE802.11b/802.11g/802.11n; 2.4 GHz.
• Bluetooth version: BT5.2.
• Available video resolutions: main stream: 720p; WVGA; D1; CIF, sub stream: 1080p; 720p; WVGA; D1; QVGA; CIF.
• Frame rate: 25 fps.
• Bit rate: 256 kbps–4096 kbps.
• Tamper alarm.
• Calling to indoor monitors.
• Information release: can receive and display text messages sent by the management center.
• Door/gate opening via indoor monitors, management center, mobile phone, tablet.
• Supplies power to the card reader and electromagnetic lock: via PoE up to 12 V / 0.5 A, via power adapter up to 12 V / 1.5 A.
• Lock control: 1 channel.
• Exit button connection: 1 channel.
• RS-485 interface: 1 channel.
• Wiegand: 1 channel, input/output.
• Alarm: 2 inputs + 1 output.
• Door status detection: 1 channel.
• Power supply: DC 12 V, 3 A / standard PoE (802.3af/at).
• Power consumption: standby 8 W, operating 10 W.
• Operating environment: –30° to +60°, 0%–90% RH (non-condensing).
• Protection rating: IP65 (with silicone sealant).
• Housing material: tempered glass; PC (polycarbonate) + ABS plastic.
• Mounting: surface-mount (flush-mount installation requires silicone sealant).
• Dimensions: 186.8 × 81.4 × 23.3 mm.
• Weight: 0.49 kg.
• Color: dark silver.
• Warranty: 36 months.
