AC Isolator Switch – 4P, 63A, 230VAC, IP65 | NV822638
SKU: 9990000822638
5 in stock
Keywords: AC Isolator Switch - 4P, 63A, 230VAC, IP65 | NV822638, Circuit Breakers 4P, Circuit Breakers 4P AC Isolator Switch - 4P, 63A, 230VAC, IP65 | NV822638, buy AC Isolator Switch - 4P, 63A, 230VAC, IP65 | NV822638, cheap AC Isolator Switch - 4P, 63A, 230VAC, IP65 | NV822638, best AC Isolator Switch - 4P, 63A, 230VAC, IP65 | NV822638, online AC Isolator Switch - 4P, 63A, 230VAC, IP65 | NV822638
Shipping:
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro
Venipak courier 1-3 business days: 7.90 euro
Venipak pickup 1-3 business days: 3.30 euro

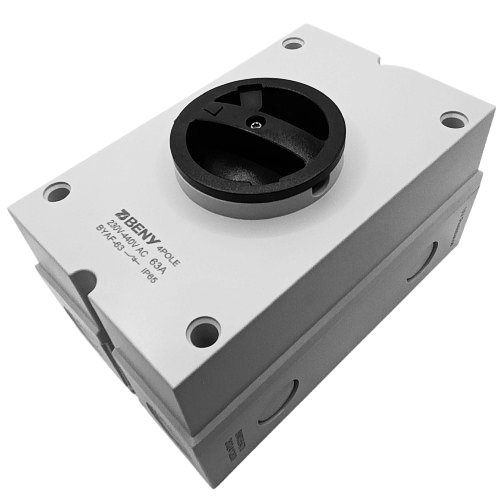

Enclosed (IP65) rotary AC isolator switch, up to 63 A, 4-pole, 230V-440V AC
Features:AC switch rated 63A, 230V-440V for outdoor AC applications, with handle, with lock, for safe use and maintenance.The AC isolator can be installed at solar inverter AC side and match any AC applications in the voltage range 230-440V.Weatherproof, robust, reliable, suitable for any external application. The base-mounted mechanism provides for easier wiring and more wiring room.Lockable handler.Complete with a set of mounting screws.
Technical specifications:Number of poles: 4.Rated voltage (Ue): AC 230-440V.Rated current (In): 32A.Insulation voltage (Ui): 1000V.Rated impulse withstand voltage (Uimp): 2.5kV.Mechanical service life: 10000 cycles.Electrical service life: 1500 cycles.Protection class: IP65.Suitable cable cross-section: 4.0 – 16.0 mm².Color: white.Dimensions: 171.4 x 108.4 x 108.9 mm.Switch rating: AC-21A.Conform to: IEC 60947-3, EESS approved.
Warranty: 24 months.
